Modules and ready-made cable solutions

From Naficon Liitin Oy you can get modular and data center products. For example, there are many housing and modular options available. Contact us and ask for more information to support your choice!

Panels and modules

Multi-Purpose 19” Modular Chassis (Fiber + Copper)

The multi-purpose 19-inch modular chassis is designed for both fiber and copper cabling. The frame includes four module openings, and different module types can be installed depending on the required connectivity. The structure is fully modular, allowing fiber and copper modules to be combined freely.

12-Fiber Module

The 12‑fiber module uses an MPO/MTP adapter on the rear side. The front interface provides 12 LC ports, and the internal structure is based on an MPO–LC fanout. The module can be stacked vertically up to three units high. It fits into any one of the four openings in the chassis.

24-Fiber Module

The 24‑fiber module also uses an MPO/MTP adapter on the rear, with an option to install up to three adapters. The front interface includes 24 LC ports, and the internal structure is the same MPO–LC fanout. This module is single‑height and fits into any of the four openings in the chassis.

CAT 6A Module

The CAT 6A module is intended for copper cabling. It is a single‑height module with six Keystone jacks on the front. A pre‑terminated cable option is available. It fits into any of the four openings in the chassis and serves as the copper cabling alternative alongside the fiber modules.

Blanking Plate

The blanking plate is used to cover unused module openings. It has no interfaces or internal structure and simply closes empty module slots for protection and a clean appearance.

Fiber-only chassis and modules are also part of our product range. The module has two MPO/MTP connector slots on the back and six slots for LC-QUAD adapters on the front. The chassis can accommodate four modules. The chassis is also available with crash protection. These modules also have short MPO-LC patch cables installed inside.

19” LC module

The modular structure is a convenient solution when you do not want to purchase a complete 48- or 96-fiber 19” ready-made panel. By using modules, you can complete the panel in four different stages as your connection needs increase.

The modular structure includes a 19” rack and ready-made modules. The modules use a very easy-to-handle FTMS cable, which is small in diameter, yellow in color, and very installation-friendly.

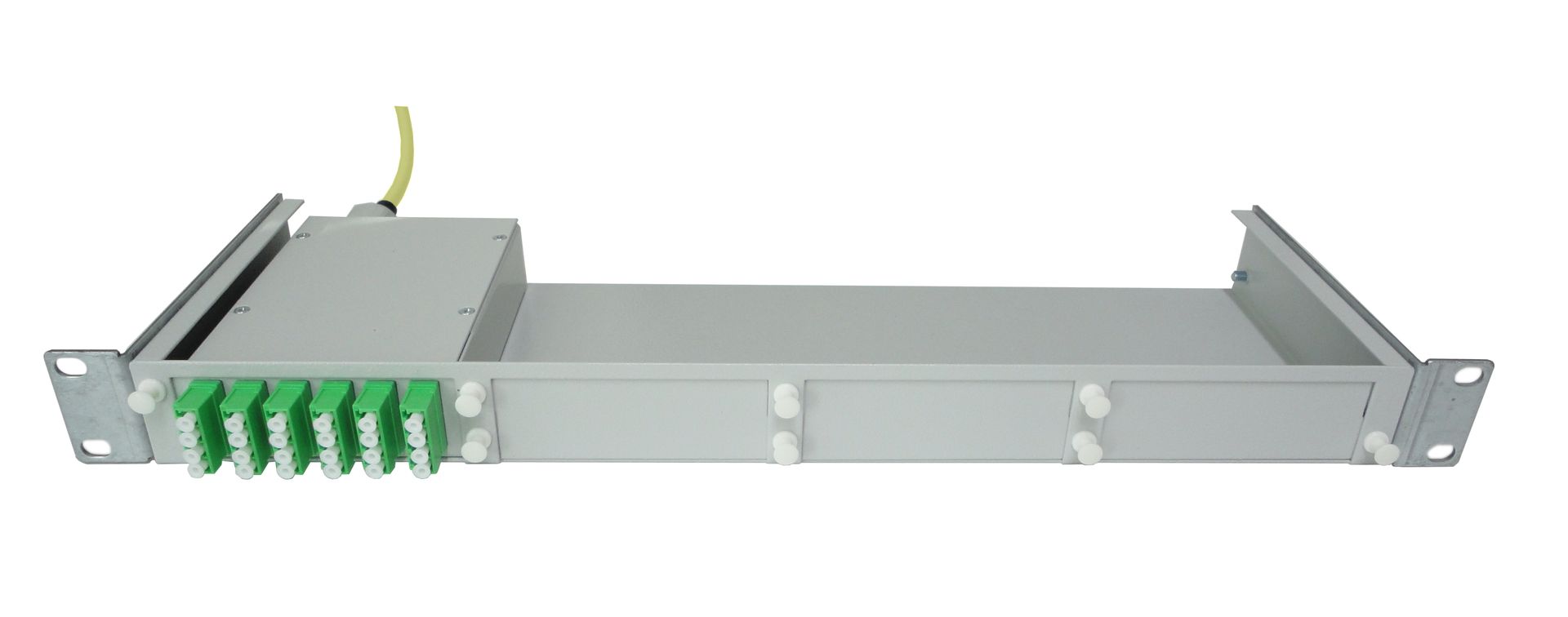

19" LC module chassi

The module chassis is 1 U high and can accommodate four modules. The modules are connected to the chassis from the back, so to speak, which allows the use of modules with pre-installed cables.

 Module

One module can accommodate 24 LC connectors, so 1 U panel can accommodate 96 LC connectors. Modules can also be equipped with a smaller number of connectors.

Normal modular cables have a module pre-installed at both ends, but the module can also be left out due to difficult feedthroughs.

The following tables show the product numbers for the most common lengths:

We have a wide range of modular and data center products.
