NAF ONT enclosures

The purpose of ONT (Optical Network Terminal) enclosures is to hide fiber modems from view and at the same time protect them from shock and dust. There are versions with a metal lid and with a plastic cover. The plastic cover allows the Wi-Fi signal to pass through with little attenuation.

FTTH

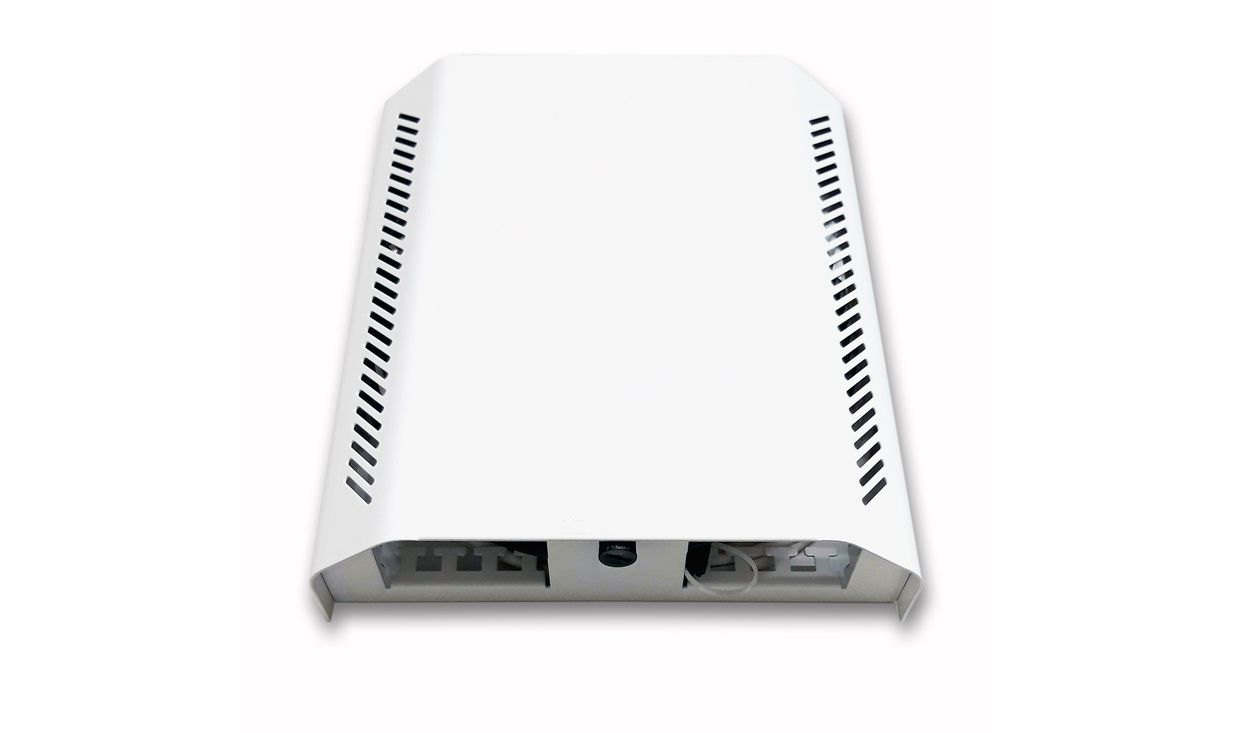

NAF ONT enclosures

Päätelaitekotelo

• Identification code 7263321
• External dimensions 260 x 227 x 70mm (HxWxD)
• An enclosure in which you can place Optical Network Terminal (ONT) and the cables.
• At the top of the base plate there is a liftable adapter plate for two SC-simplex adapters.
• Colour white, material steel.
• For indoor use
• Weight 1.5kg

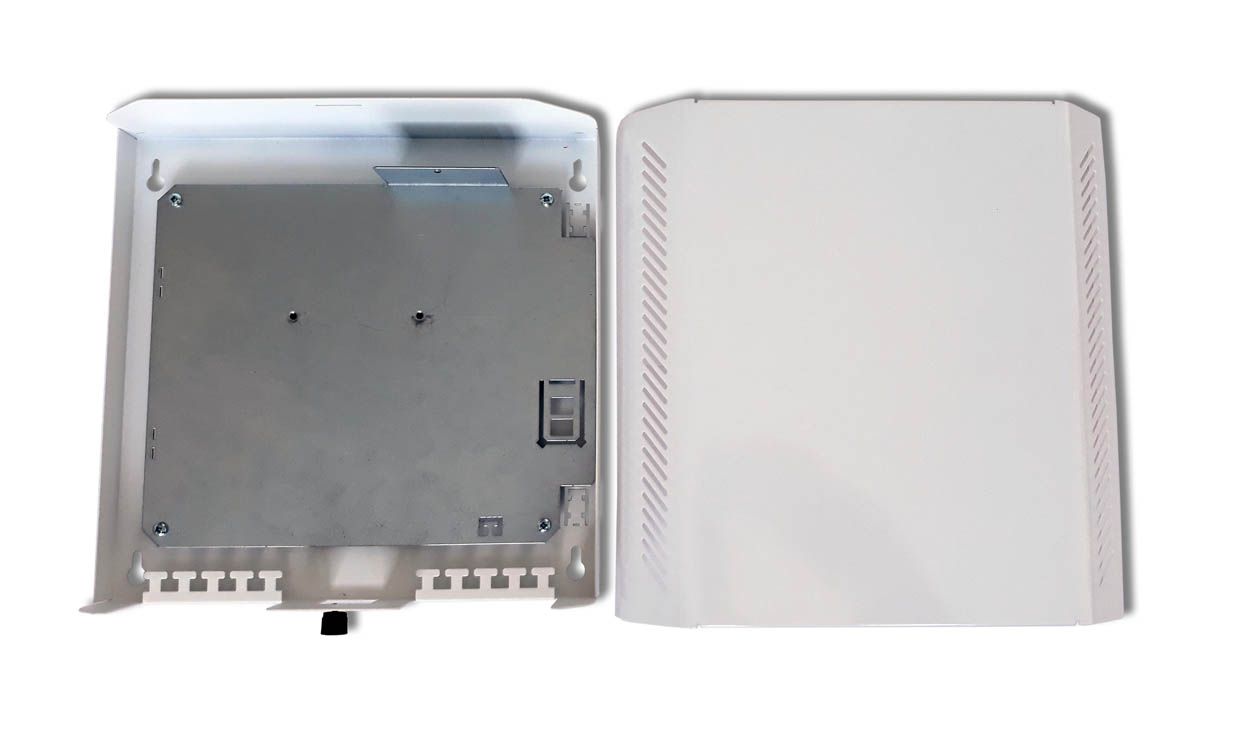

NAF Päätelaitekotelo WiFi

• Identification code 7269418
• Otherwise the same enclosure, but the cover is made of white polycarbonate, enabling Wi-Fi signal to pass through.

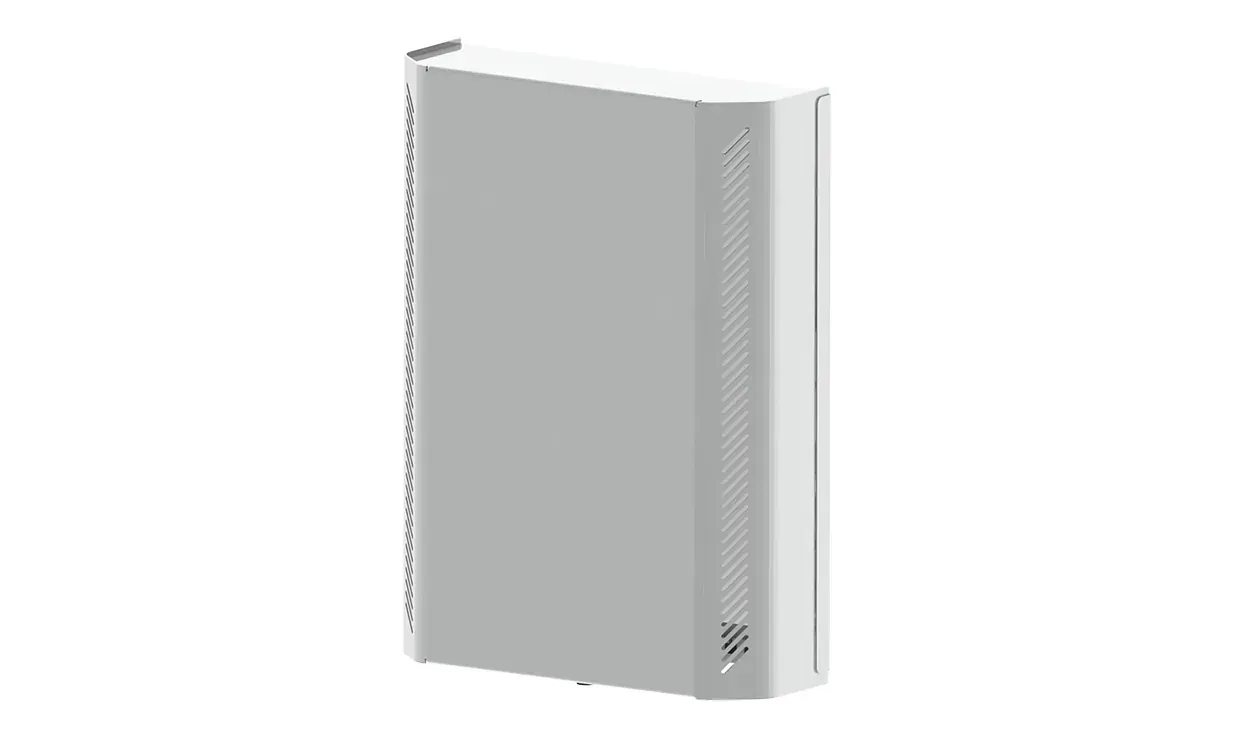

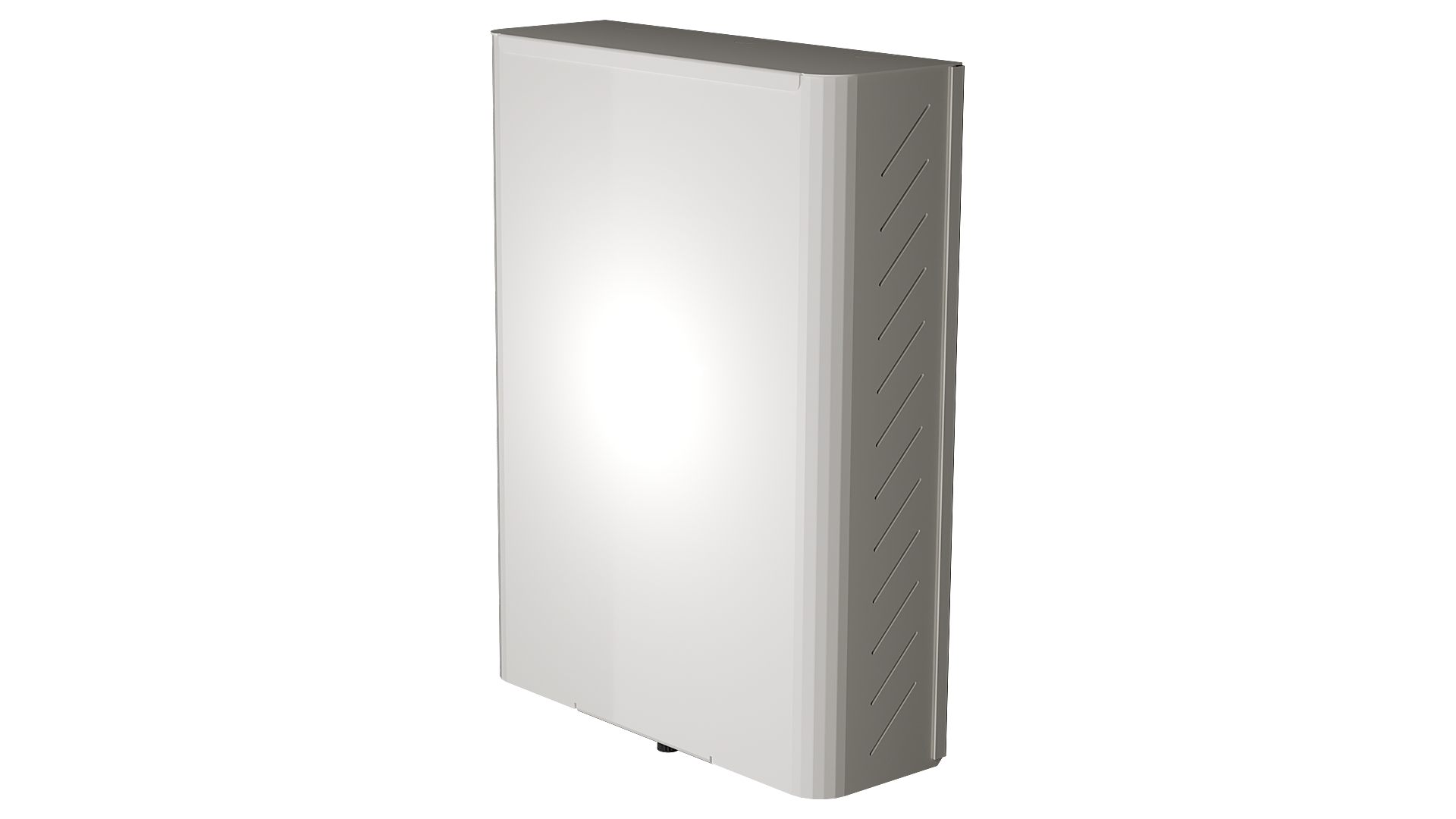

NAF appartment enclosure

• Identification code: 7263564
• Dimensions 411 x 304 x 100mm (HxWxD)
• The purpose of ONT (Optical Network Terminal)
  enclosures is to hide fiber modems and cables
  from view and at the same time protect them
  from shock and dust. The enclosure can accommodate both the ONT and the wireless access point, if
  they are separate.
• The base plate has an adapter plate for four RJ45
  keystone connectors that can be lifted as needed.
• The housing cover is made of white polycarbonate,
  which enables good WiFi signal quality.
• Steel frame
• The enclosure is white in color
• In the middle of the lower edge of the enclosure
  there is an opening for a cable duct.
• There are also places for cable tie-attached strain
  reliefs at the bottom edge
• A two-part surface-mounted socket is included
• The cover is secured with a thumb screw, making
  it easy to open
• For indoor installation
• Weight 2.6 kg

Päätelaitekotelo WiFi

• Identification code 7263323
• External dimensions (HxWxD): 282 x 280 x 70
• The cover is made of white polycarbonate, which enables good wifi signal quality.
• The frame is made of steel
• For indoor use
• At the side of the base plate there is a liftable adapter plate for two SC-simplex adapters.
• In the middle of the lower edge of the housing there is an opening for a cable chute.
• The lid is fastened with a finger screw, making it easy to open when it becomes necessary to add, for example, CAT cables.
