Fiber blowing machines for FTTH network
Fremco is a Danish company whose products are developed in close cooperation with customers, duct manufacturers and cable manufacturers. This is because Fremco wants to provide the best and most user-friendly products or fiber blowing solutions covering all dimensions of fiber, cable and duct.

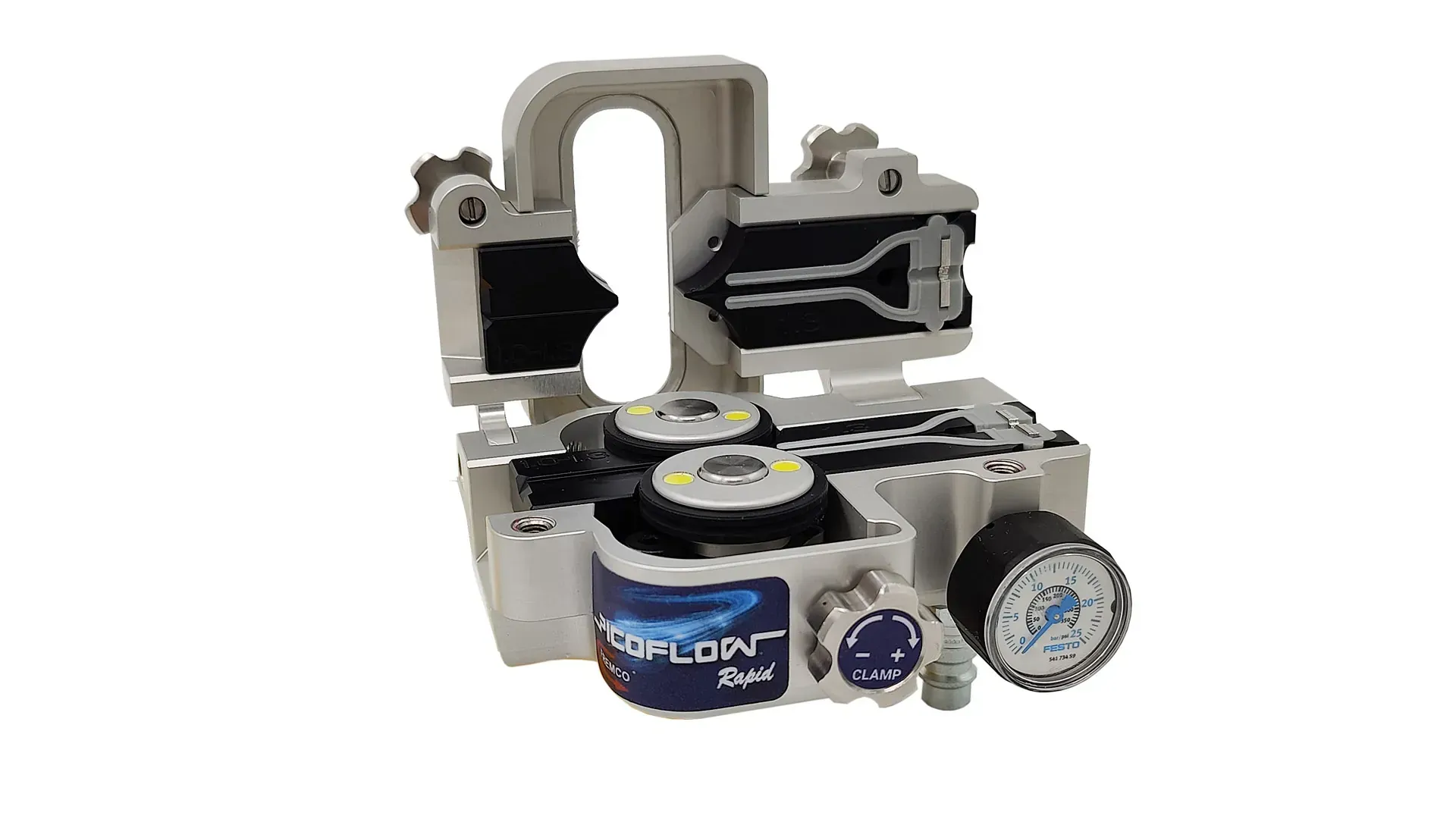

PICOFLOW RAPID
Handheld fiber blowing machine, perfect for installers with the occasional job or for experienced installers who need to blow a short distance to finish up a job.
- Fiber/Cable outer diameter: 0,8-3mm
- Duct size (outer diameter): 3,0-12,7mm
- Preparation time: 3 min
- Max speed: up to 90 m/min
- Blowing distance: up to 500 m
PICOFLOW RAPID
Compact machine
A small, handheld machine that works with a drill machine.
Tool-free installation
The user-friendly interface eliminates the need for tools during installation. With a simple and intuitive design, the machine can be easily opened and closed by hand with quick fiber and duct loading. This can result in completing one more job each day.
Cost effective
PicoFlow RAPID is designed to be a cost-effective solution, saving both time and resources in fiber blowing applications.
Seamless field operation
Experience hassle-free and prompt field operation with our machine. Upon unpacking, it is ready to run, minimizing unnecessary delays and complications.

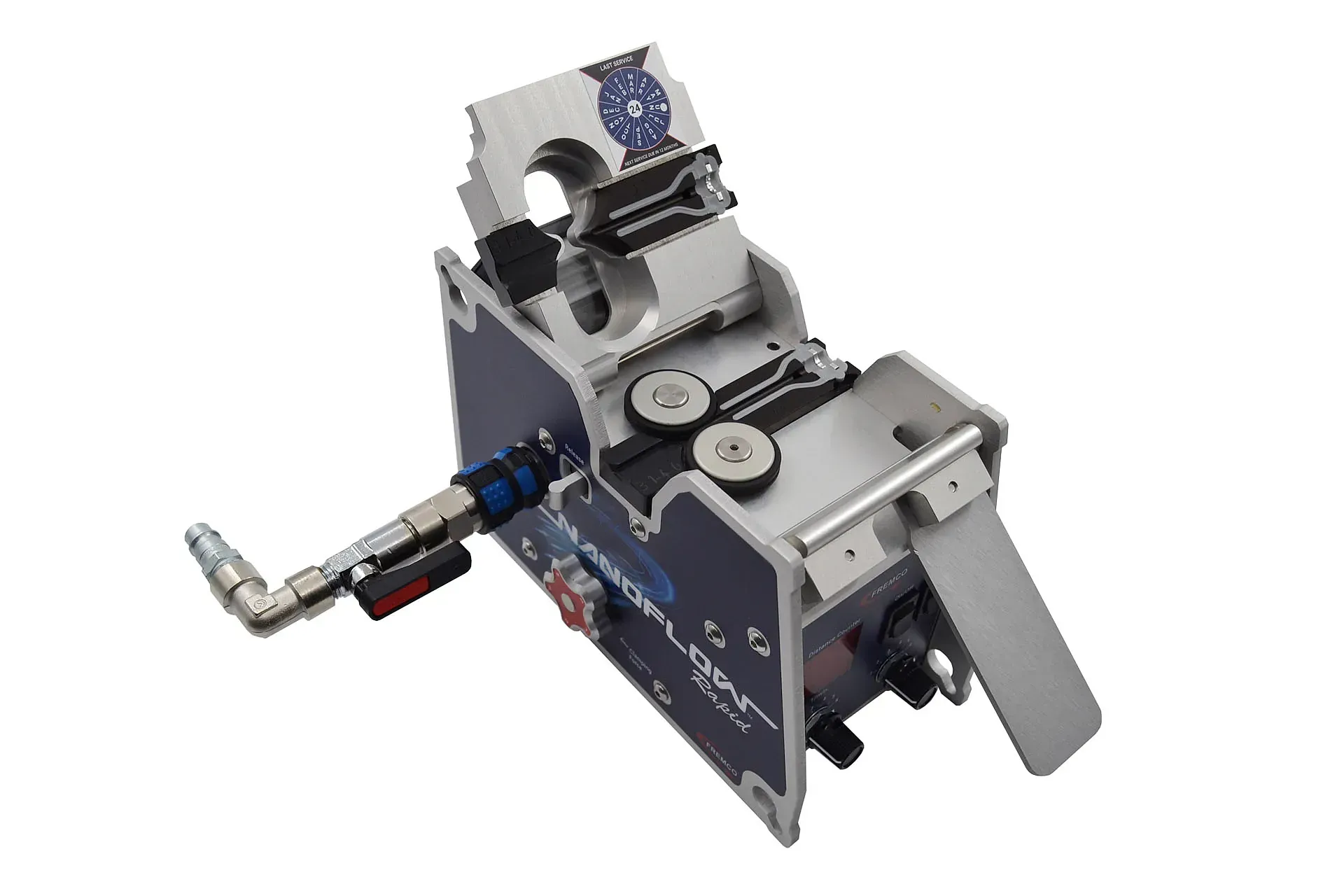

NANOFLOW RAPID
Small but powerful fiber blowing machine, which can blow both blown fibre (EPFU) and micro/nano cables. Tested in accordance to IEC standards.
NanoFlow MAX has been upgraded to a new NanoFlow Rapid model. Key Improvements:
- Increased Maximum Pressure: Now up to 16 bar for more powerful installations.
- Versatility: Capable of handling a wider range of fiber deployment tasks within FTTH.
- Enhanced Safety: Features an overpressure valve for added protection.
- New Design Features: Includes a see-through lid for easy monitoring and a ball valve connection for added convenience.
- Fiber/Cable outer diameter: 0,8-4,5mm
- Duct size (outer diameter): 3,0-12,7mm
- Preparation time: 3 min
- Max speed: up to 125 m/min
- Blowing distance: up to 1200 m
NANOFLOW RAPID
Adjustable clamping force
Secures grip around cable/fiber during installation.
Tool free installation
Easy to open and close by hand with quick load of fiber and duct. Adjustable speed and torque. Battery-powered (independent of 100V/240V).
Unique fiber protection technology – Tested in accordance to IEC standards
If the maximum recommended load on the fiber exceeds the preset torque, the machine stops the blowing process immediately without damaging the fiber.

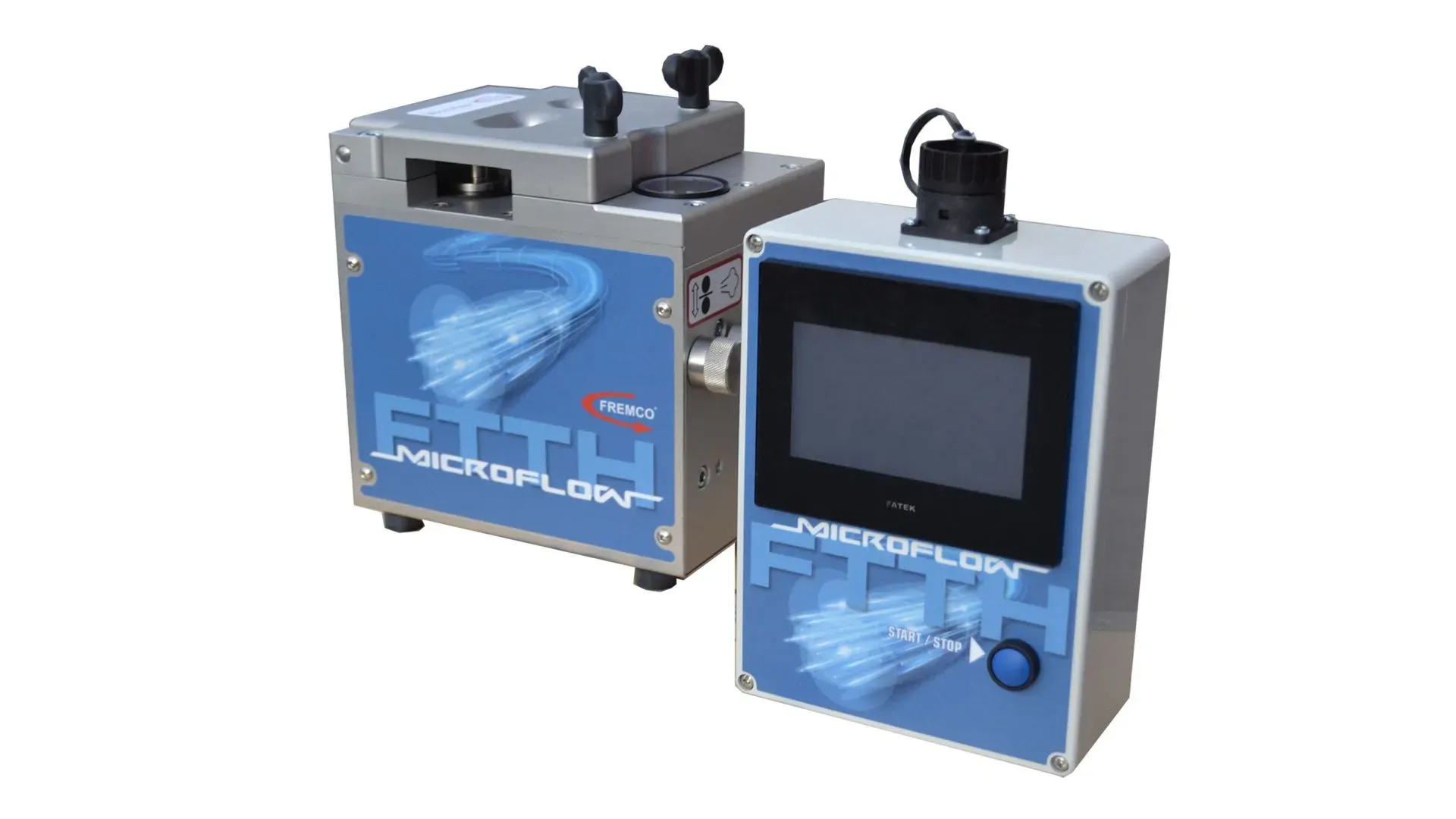

MICROFLOW TOUCH
Fully automatic fiber blowing machine that secures fast and reliable optical fiber blowing. Designed for air blown fiber and small fiber optic cables.
- Fiber/Cable outer diameter: 0,8-6,5mm
- Duct size (outer diameter): 4-16mm
- Preparation time: 5 min
- Max speed: up to 90 m/min
- Blowing distance: up to 2500 m
MICROFLOW TOUCH
User-friendly touch display
The Microflow Touch’s control unit has a user-friendly touch display, which can be used to make a number of different adjustments.
Equipped with a unique protection technology
The unique protection technology that stops the machine if the fiber cable meets resistance. Any obstacles are registered by a sensor and the motor stops. The machine will also stop automatically if the motor exceeds the preset maximum torque level. In both cases, the machine stops immediately so the fiber cable does not get damaged.
Preset automatic stop
The control unit can be used to presetting distance counter to stop after a certain blowing distance, making it possible to work alone.

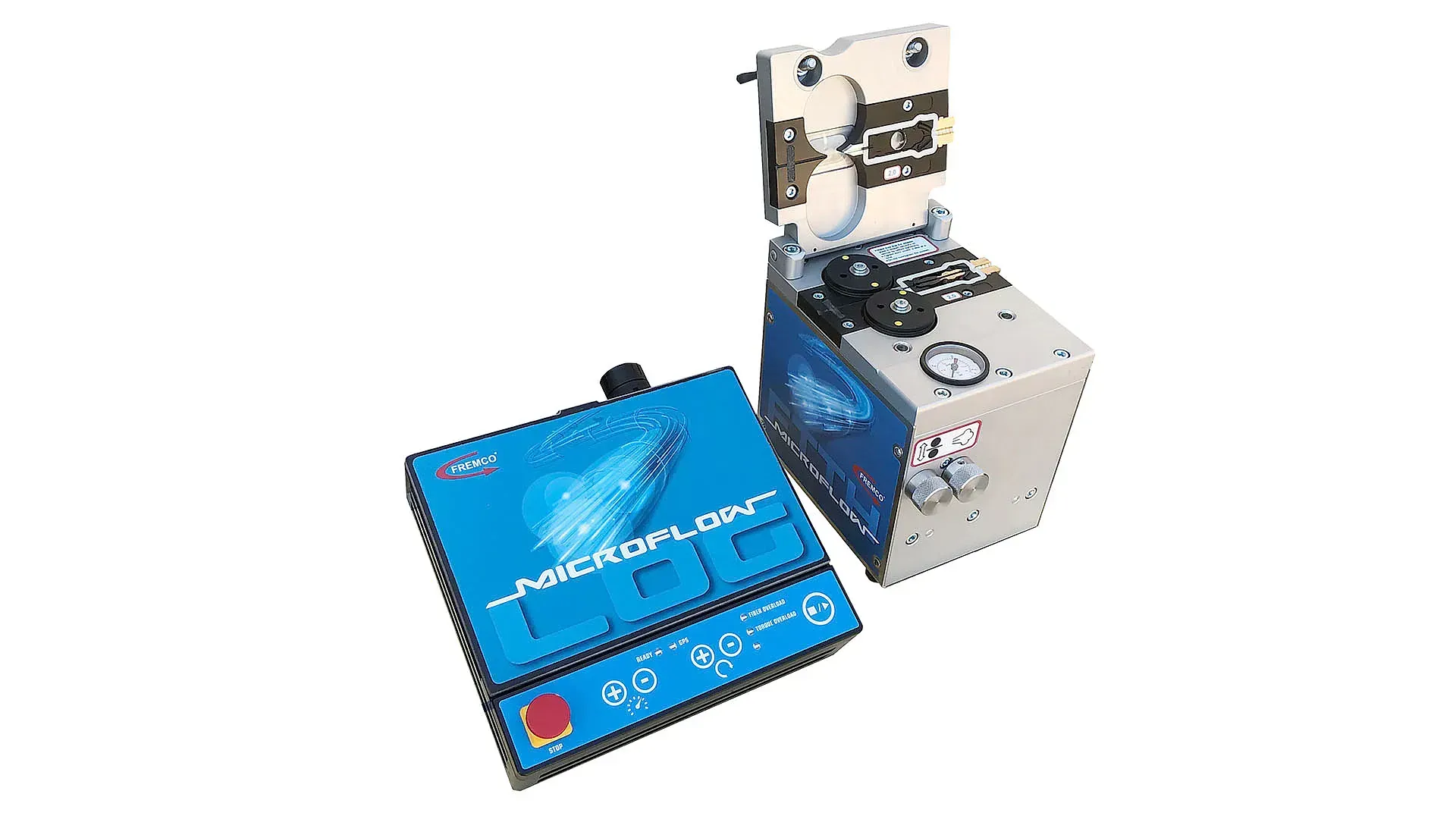

MICROFLOW LOG
Compatible with OptiCloud, the MicroFlow LOG is making work easier for network owners, contractors and installers.
- Fiber/Cable outer diameter: 0,8-6,5mm
- Duct size (outer diameter): 4-16mm
- Preparation time: 5 min
- Max speed: up to 90 m/min
- Blowing distance: up to 2500 m
MICROFLOW LOG
Compatible with OptiCloud
Access to OptiCloud data gives you: Job documentation, utilization data (how the machine is utilized and data to improve it), maintenance and service recommendation. The LOG template can be individually adapted to the specific job.
Equipped with protection technology
The unique well-known protection technology that stops the machine if the fiber cable meets resistance. Any stop is registered by a sensor and the motor stops.
Verification of blowing quality
Each job will end with a full report that ensures that the quality is 100% documented. This will minimize the risk of costly errors.

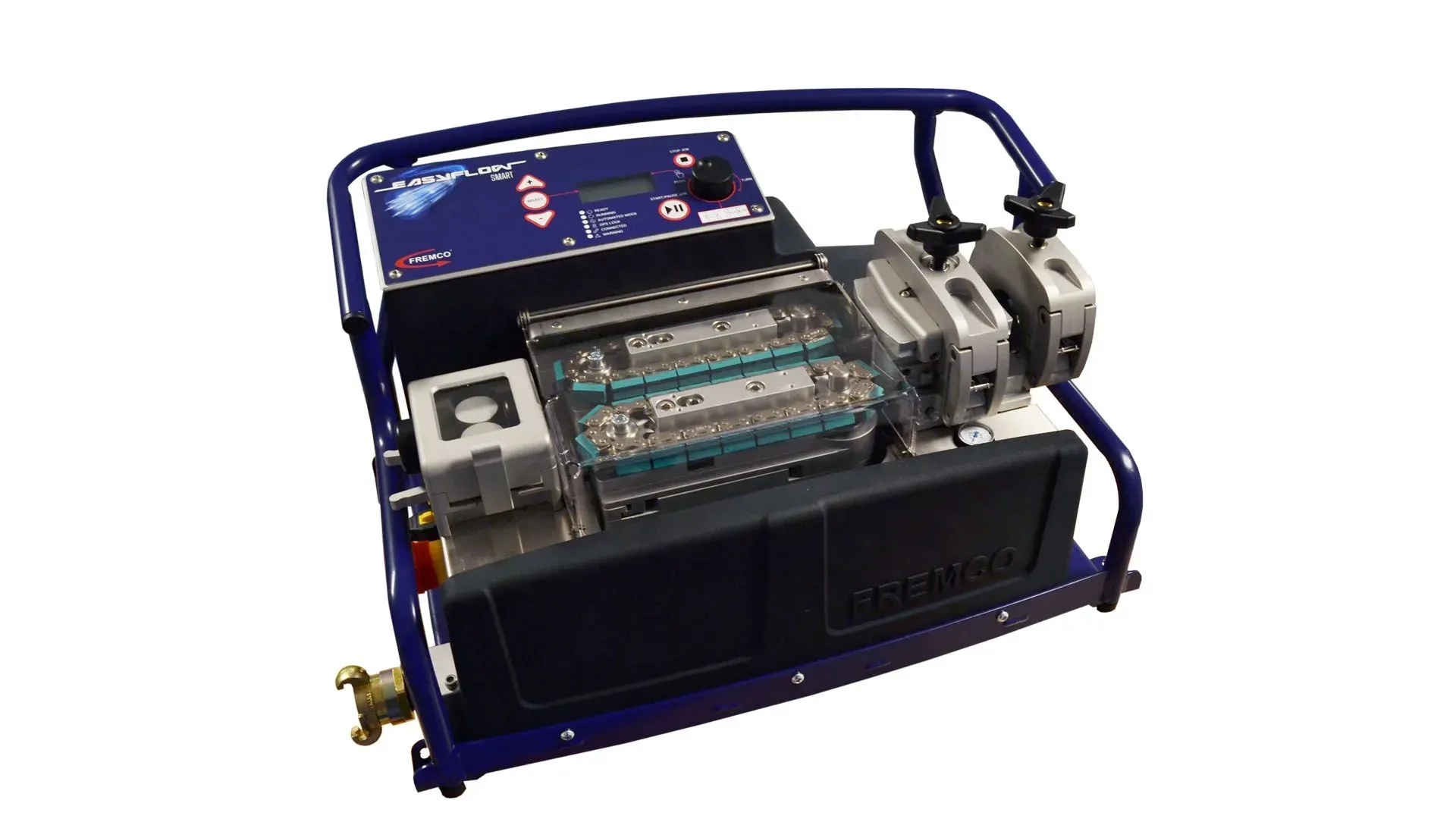

EASYFLOW SMART
Fully automatic fiber blowing machine that secures reliable optical fiber blowing. Designed for cable from 4-16 mm.
- Fiber/Cable outer diameter: 4-16mm
- Duct size (outer diameter): 8-40mm
- Preparation time: 5 min
- Max speed: up to 80 m/min
- Blowing distance: up to 3500 m
EASYFLOW SMART
Fully automatic fiber blowing machine
Based on 25 years of experience in the fiber blowing market, EasyFlow SMART (Patent pending) includes all the experience of a fiber blowing expert. The automatic mode protects the cable all the way during the fiber blowing job, minimizing costly errors and significantly loss of cable.
Equipped with a cable protection system
With the cable protection system, the machine will never exceed cable push force, thereby significantly reducing possible damage on the cable. This means you save costs on new cable and extraction of damaged cable plus labour cost.
Fully automatic air supply
The automatic air supply means that you do not have to invest in a large compressor, but can do with a smaller one, as the machine takes full advantage of the available air pressure and volume. This also maximizes the fiber blowing distance resulting in fewer manholes required and improved profits.
Tool free configuration
Configurating the machine can be done without any tools. With the tool free interchangeable chain, the replacement of chains is also extremely easy and quickly done. This saves time during configuration making it possible to do multiple jobs a day.
Mandatory parts for machine usage
We offer a wide range of machines and accessories covering all dimensions of fiber cables and ducts. Our machines are ideal for both inside and outside installation covering installations within FTTH, access network and backbone.
