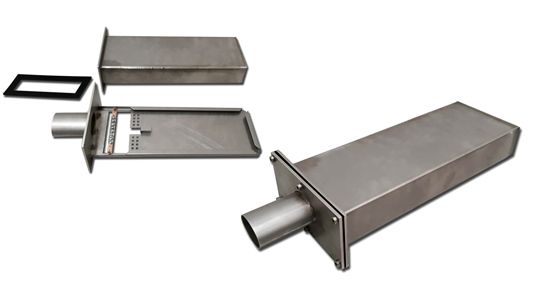

NAF mini GJC, 7263227 and 7269419
- Product code 7263227
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 48 splices.
- The closure can be used for mid span access.
- External dimensions 489 x 182 x 94 mm.
- Can be used as an extension for the trunk cable or as a branch extension for 1 to 4 smaller cables.
- There is one oval pass-through for mechanical cable glands on the lower part.
- Material is acid-proof stainless steel
- Plastic fasteners for the uncut fiber tubes can be placed under the splice tray.
- IP 68. Designed and manufactured in Finland

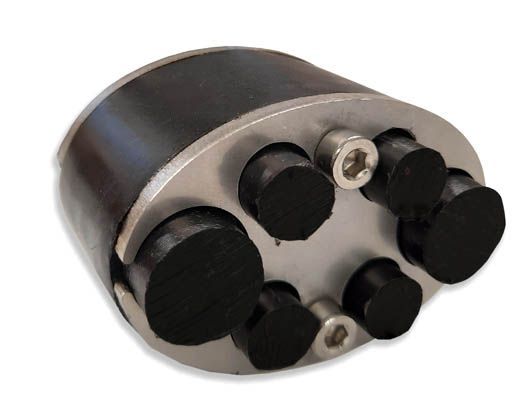

- In addition to normal accessories, the basic package includes a mechanical cable gland of 2x15mm + 4x10mm (7263242) and a cable shrink with branching pieces as an alternative to this.

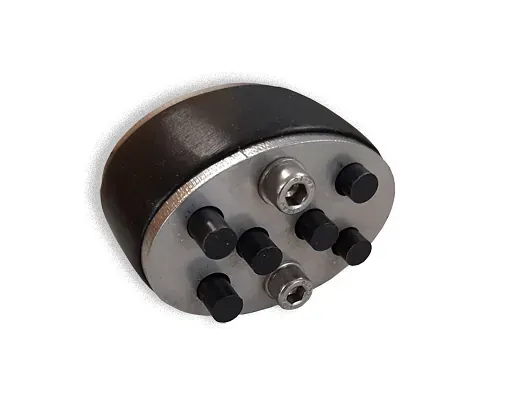

- Suitable shrink-free cable lead throughs: 7263240, 7263241, 7263242, 7263243
- NAF mini GJC, with all other accessories except mechanical cable gland, has an identification code 7269419
- Installation instructions

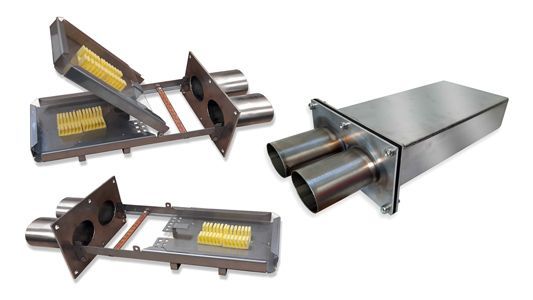

NAF mini 48/96 GJC, 7269476 and 7269481
- Product code 7269476
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 48 splices and with additional splice tray (7269478) the capacity doubles to 96 splices.
- Suitable for different cable structures and the closure can be used for mid span access.
- Microducts can be brought directly into the closure
- External dimensions 391 x 180 x 94 mm.
- There are two oval pass-throughs for mechanical cable glands or heat shrinks on the lower part.
- Material is acid-proof stainless steel
- IP 68. Designed and manufactured in Finland
- Suitable shrink-free cable lead throughs: 7263240, 7263241, 7263242, 7263243
- Equipment: 2 cable shrinks (56/16-250mm), 2 branch blocks, 1 shrink cap, 1 splice tray with 2 pcs of 24-fiber splice holders preinstalled, 1 extra 24-fiber splice holder, 6 pcs grounding connectors, 12 pcs mounting screws M4x12mm, 12 pcs cable ties 2,5x100mm, 1 earthing connector M6-16mm², 1 cleaning wipe and 1 silica gel bag 25g.
- NAF mini 48/96 GJC without shrinks 7269481
- Installation instruction for direct buried cables
- Installation instructions for microduct cables

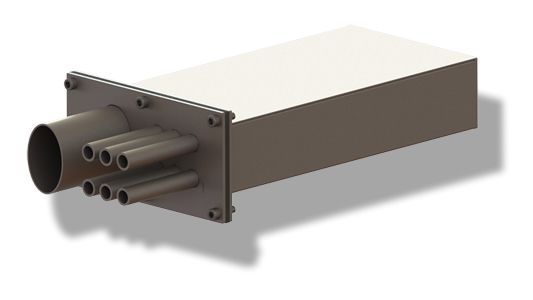

NAF mini 48/96 oval+6x11mm, 7263536
- Product code 7263536
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 48 splices and with additional splice tray (7269478) the capacity doubles to 96 splices.
- Suitable for different cable structures and the closure can be used for mid span access.
- Microducts can be brought directly into the closure
- External dimensions 391 x 180 x 94 mm.
- There is one oval pass-through for mechanical cable gland or heat shrink on the lower part and six round pass-throughs with the inner diameter of 11 mm.
- Material is acid-proof stainless steel
- IP 68. Designed and manufactured in Finland
- See also 7263535, NAF mini 48/96 2x17mm+6x11mm

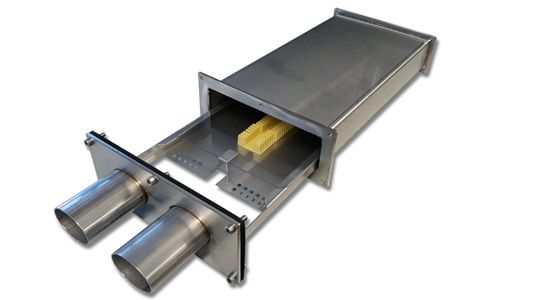

NAF GJC 48/96, 7269294 and 7263341
- Product code 7269294
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 48 or 96 splices

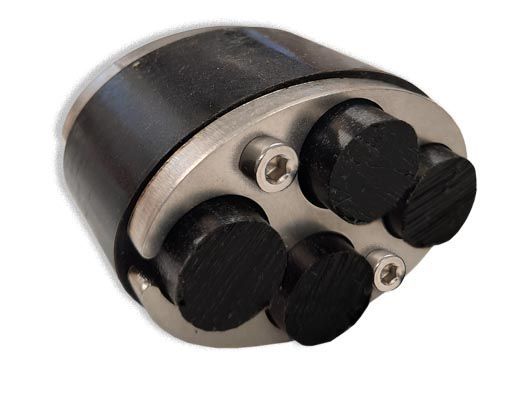

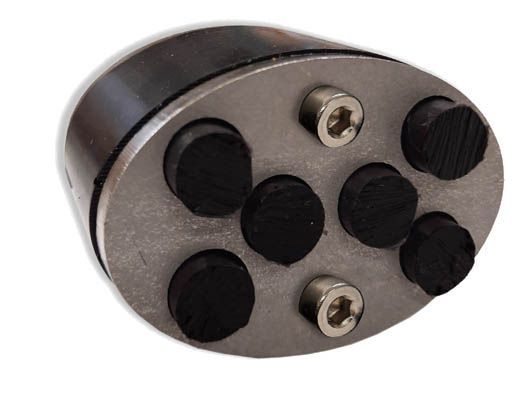

- In addition to normal accessories, the basic package includes mechanical cable glands of 4x15mm (7263241) and 6x10mm (7263243) and cable shrinks with branching pieces as an alternative to this.
- The closure can be used for mid span access.
- External dimensions 489 x 235 x 94 mm.
- There are two oval pass-throughs for mechanical cable glands on the lower part.
- Material is acid-proof stainless steel
- Plastic fasteners for the uncut fiber tubes can be placed under the splice tray.
- IP 68. Designed and manufactured in Finland.
- Suitable shrink-free cable lead throughs: 7263240, 7263241, 7263242, 7263243
- The product code for NAF GSC 48/96 without cable glands, but otherwise the same package, is 7263341
- Installation instructions

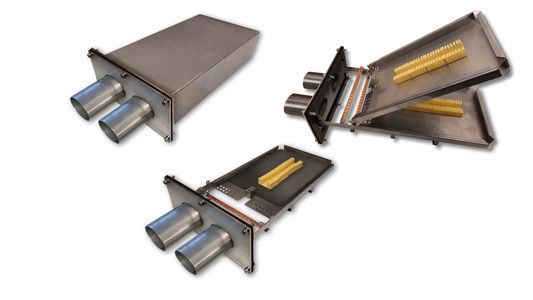

NAF GJC 96/192, 7269477 and 7269482
- Product code 7269477
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 96 splices and with additional splice tray (7269479) the capacity doubles to 192 splices.
- Suitable for different cable structures and the closure can be used for mid span access.
- External dimensions 498 x 235 x 125mm.
- There are two oval pass-throughs for mechanical cable glands or heat shrinks on the lower part.
- Material is acid-proof stainless steel
- IP 68. Designed and manufactured in Finland
- Suitable shrink-free cable lead throughs: 7263240, 7263241, 7263242, 7263243
- Equipment: 2 cable shrinks (56/16-250mm), 2 branch blocks, 1 shrink cap, 1 splice tray with 4 pcs of 24-fiber splice holders preinstalled, 1 extra 24-fiber splice holder, 8 pcs grounding connectors, 16 pcs mounting screws M4x12mm, 12 pcs cable ties 2,5x100mm, 2 grounding wires with connectors, 1 earthing connector M6-16mm², 2 pcs corrugated arc clips, 1 cleaning wipe and 1 silica gel bag 25g.
- NAF GJC 96/192 without shrinks 7269482
- Installation instructions

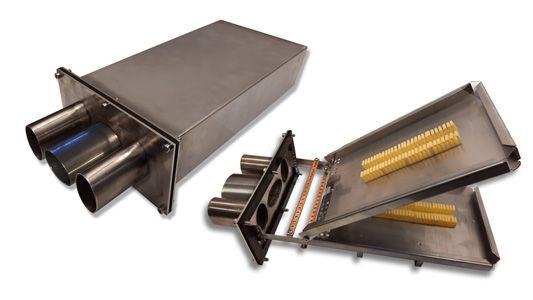

NAF GJC 192 3xOval, 7269420 and 7269483
- Product code 7269420
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 192 splices. Includes two 96-fiber splice trays, of which the upper splice tray is hinged.
- Suitable for different cable structures and the closure can be used for mid span access.
- Suitable for direct buried microducts.
- External dimensions 498 x 235 x 125 mm.
- There are three oval pass-throughs for mechanical cable glands or heat shrinks on the lower part.
- Material is acid-proof stainless steel
- IP 68. Designed and manufactured in Finland
- Suitable shrink-free cable lead throughs: 7263240, 7263241, 7263242, 7263243
- Equipment: 2 cable shrinks (56/16-250mm), 2 branch blocks, 1 shrink cap, 2 splice trays with 4 pcs of 24-fiber splice holders preinstalled, 1 extra 24-fiber splice holder, 8 pcs grounding connectors, 16 pcs mounting screws M4x12mm, 24 pcs cable ties 2,5x100mm, 3 grounding wires with connectors, 1 earthing connector M6-16mm², 3 pcs corrugated arc clips, 1 cleaning wipe and 1 silica gel bag 25g.
- NAF GJC 192 3xOval without shrinks 72629483
- Installation instructions

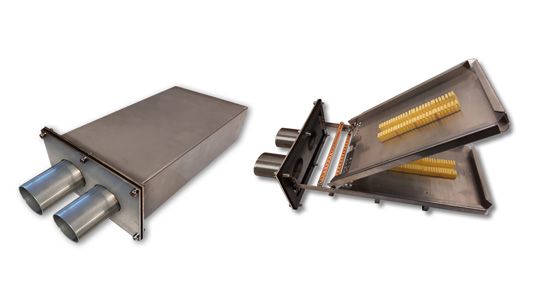

NAF GJC 192, 7269300 and 7269475
- Product code 7269300
- The closure is so called butt joint consisting of a lower part with splice tray and a protective cover.
- Capacity for 192 splices. Includes two 96-fiber splice trays, of which the upper splice tray is hinged.
- In addition to normal accessories, the basic package includes mechanical cable glands of 4x15mm (7263241) and 6x10mm (7263243) and cable shrinks with branching pieces as an alternative to this.
- The closure can be used for mid span access.
- External dimensions 498 x 235 x 125mm.
- There are two oval pass-throughs for mechanical cable glands on the lower part.
- Material is acid-proof stainless steel.
- IP 68. Designed and manufactured in Finland.
- Suitable shrink-free cable lead throughs:: 7263240, 7263241, 7263242, 7263243
- NAF GJC 192 with out mechanical cable glands and shrinks 7269475
- Installation instructions

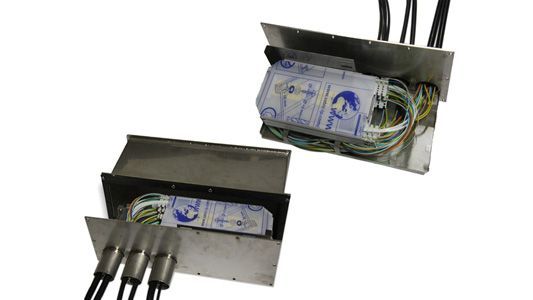

NAF GJC 480, 7263251 and 7269474
- Product code 7263251
- The closure is so called butt joint consisting of a lower part with splice tray holders and a protective cover.
- Capacity for 480 splices
- Suitable for different cable structures and the closure can be used for mid span access.
- External dimensions 180x 495 x 287 mm.
- 48 fiber and 96 fiber hook-fastened splice trays can be placed on the splice tray holder. Identification codes for suitable splice trays: 7264145 and 7269282
- There are three oval pass-throughs for mechanical cable glands or heat shrinks on the lower part.
- Material is acid-proof stainless steel
- IP 68. Designed and manufactured in Finland.

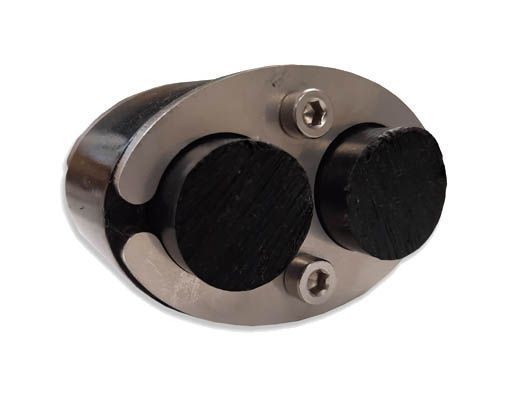

- In addition to normal accessories, the basic package includes mechanical cable glands of 2x20mm (7263240), 4x15mm (7263241) and 6x10mm (7263243) and cable shrinks with branching pieces as an alternative to this. Splice trays are not included.
- Another suitable mechanical cabel gland: 7263242
- NAF GJC 480 without mechanical cable glands 7269474
