NAF FTTH joint closures

As the name suggests, Naficon's FTTH joint closures are intended for FTTH cables. Their splicing capacity is 12-24 fibers. Joint closures are suitable for extending and branching FTTH cables.

This is the text area for this paragraph.To change it, simply click and start typing. Once you've added your content, you can customize its design by using different colors,fonts, font sizes and bullets. Just highlight the words you want to design and choose from the various options in the text editing bar.

NAF FTTH JOINT CLOSURES

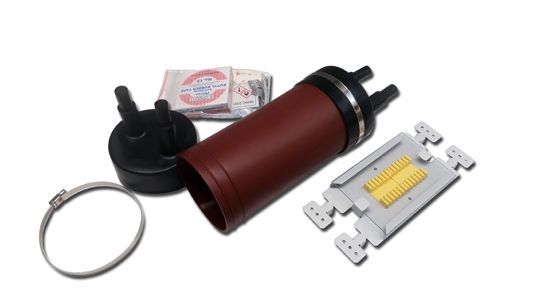

  • NAF FTTH joint closure, 7269293

    Naficon Liitin Oy
    • Product code 7269293
    • Suitable for extending and branching FTTH cables
    • Simple and sturdy construction
    • Cable glands are sealed with vulcanized tape
    • Can be opened and closed after first installation
    • Capacity for 24 splices
    • Dimensions 240 x Ø 110 mm
    • Includes rubber cable glands at both ends which open
    • Suitable for different cable structures
    • IP 68
    • Can be placed directly on the ground
    • Installation instructions

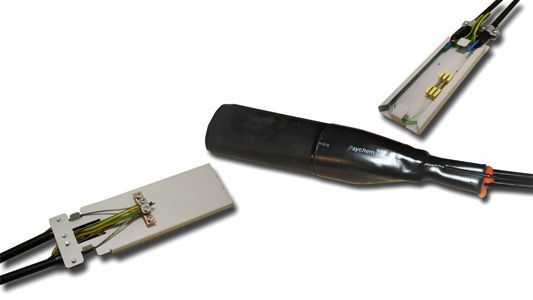

  • NAF FTTH 12 joint closure, 7269376

    Naficon Liitin Oy
    • Product code 7269376
    • Suitable for extending or branching FTTH cables.
    • Three cables can be brought into the joint closure.
    • Capacity for 12 splices
    • Oval shape
    • Plastic frame
    • The cable gland is carried out with a cable shrink and a branch block.
    • The shell of the joint closure is shrinking from one end, so that there is no steep step between the cables and the shell.
    • Dimensions: 240x45x80 mm
    • Installation instructions

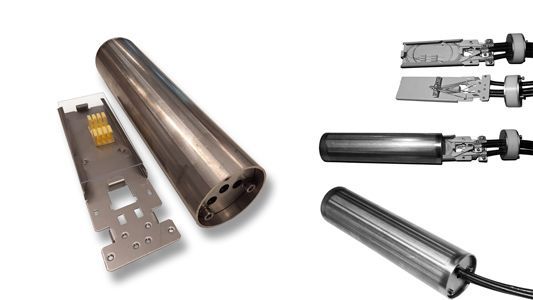

  • NAF FTTH 12 metallic joint closures, 7263439 and 7263450

    Naficon Liitin Oy
    • NAF FTTH 12 metal joint closure 10mm 7263439
    • NAF FTTH 12 metal joint closure 7mm 7263450
    • Suitable for extending and branching FTTH cables
    • Capacity for 12 splices
    • A butt joint type closure
    • The round shape gives the joint closure a very tough structure
    • The shell and the splice tray is made of acid-proof stainless steel
    • Mechanical cable gland for three cables or microducts with outer diameter of max. 10 mm or alternatively max. 7 mm
    • Suitable for various FTTH cable structures and for microducts.
    • Installation instructions for direct buried cables
    • Installation instructions for microducts
Naficon Liitin Oy

Joint closures and distribution boxes are part of our wide product range.
