Accessories for 19" mechanics

Accessories are sometimes needed for neat installation and easy use. We have fiber guides, splice tray holders and splice trays for this purpose. Other tools an accessories can be found here.

Accessories

As an accessory we have unattached impact protector, fiber guide, horizontal splice tray rack and the common splice trays that also fit in to the rack.

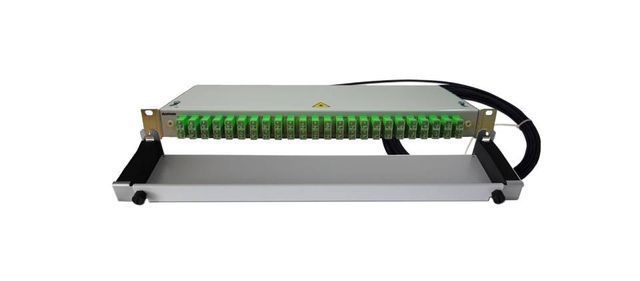

Unattached impact protector can be easily installed in front of a panel or equipment. It uses the same screws that hold the panel on the rack. The screws only need to be loosened a bit to place the protector in place. The identification code is 7262197.

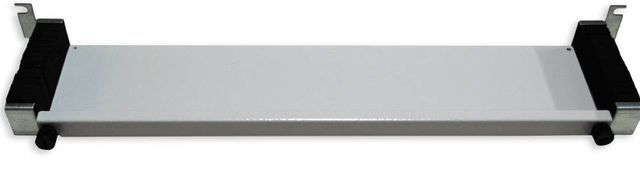

Fiber guide consists of two parts, two separate foam pull-relief parts and separate impact protector tray. It uses the same screws that hold the panel on the rack. The screws only need to be loosened a bit to place the pull-relief in place. The tray can be removed when needed while the pull-relief parts remain in place. The identification code is 7268465.

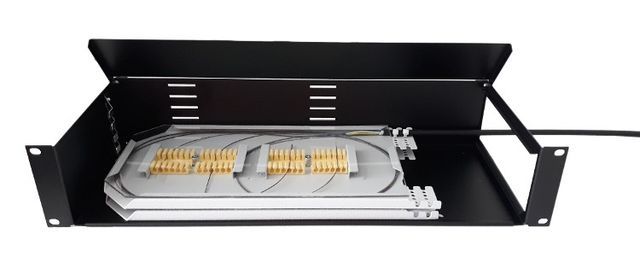

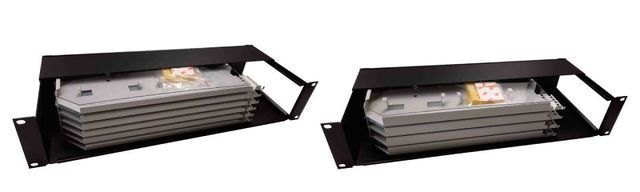

Horizontal splice tray holder for 19" rack and 96-fiber splice tray

If you need to make extensions in a 19" cross-connection cabinet, Naficon also has its own panel for this purpose. It is easy to bring the splice trays to this rack, because the opening on the side is large enough to fit them through it. The rack holds 6pcs of 48-fiber splice trays or 4pcs of 96-fiber splice trays. The height of the stand is 2U. The identification code of the product is 7263319.

Splice tray 96


There is now a splice tray for 96 fibers. The basic structure is the same as in 48-fiber, but the height is a little more. Each groove of the splice holder can hold 4 splice protector sleeves.The identification code of the product is 7269282.

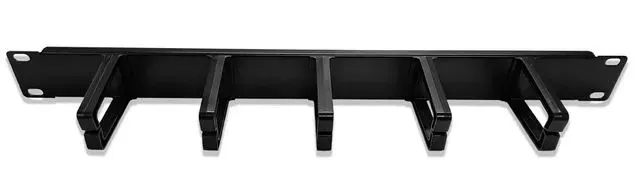

19" cable management panel 1U

Cable management panel is used in a 19" rack to guide patch cords from one side of the rack to the other. When using the cable management panel, the connections are neat and clear. The product's product code is 7263267.

You can get panels, cross-connection cabinets and combo cabinets for 19" mechanics from us.
