Tools and accessories

7268483, visibility 5km

7263179, visibility 10km

7263180, visibility 13-14km

7263181, visibility 17-18km

Includes batteries, universal 2.5mm and 1.25mm adapters, ceramic spare ferrule, cleaning sticks and carrying casing.

Optical Fiber Visual Fault Locator (VFL) is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends, faulty connectors, splices, and other causes of signal loss. It locates faults visually by creating a bright red glow at the exact location of the fault on single mode or multimode fibers.

7263119

It can peel off three different sized claddings.

There are holes for 2-3mm outer jacket, for 900µm secondary cladding and for the primary cladding. 125µm fiber is left exposed after use.

Not intended as a electrical tool, not protected against electric shock

7263117

Specialist scissors are required to cut the Kevlar from multi-core and patch cord cables. These scissors are specifically designed with robust hardened steel and very sharp serrated blades to make the removal of Kevlar very easy. Due to the sharpness and robust design of the blades they can also be used on a multitude of other materials.

7263118

A device for precise fiber cleaving

Designed for excellent portability and is ideal for FTTx applications.

The 16-position blade yields 48,000 single-fiber cleaves, or 4,000 12-fiber ribbon cleaves before requiring replacement.

Built-in scrap collector conveniently stores fiber shards until they can be safely discarded.

7263177

A tool to strip cables and fiber tubes. Can be adjusted up to 1/8 inches (3.175mm)

Besides optical cables, the strippers can be used for coaxial cable and twisted pair cables and other flexible cables.

Includes three blades, adjustable blades on each side and at the end there is a blade for longitudinal cutting.

The stripper is designed to strip away the outer jacket without damaging the inside. Lightweight, compact, cost-effective stripper is simple to operate.

7263120

A tool to strip cables and fiber tubes. Can be adjusted from 1/8 inches to 7/32 inches (3.175-5.556mm)

Besides optical cables, the strippers can be used for coaxial cable and twisted pair cables and other flexible cables.

Includes three straight blades and one round one.

The stripper is designed to strip away the outer jacket without damaging the inside. Lightweight, compact, cost-effective stripper is simple to operate.

7262596

Specially designed for servicing fiber optic cable connectors in high-density patch panels. Focus tool makes it easy to insert and remove connectors without disturbing adjacent connections. Its patented design makes it truly unique in the industry.

The FOCUS tool works with the follow fiber optic connector types: SC, SC2, MU, LC, and MTRJ connectors and different cables, including 2mm, 3mm, 1.6mm, jacketed, and 900um buffered cables. It is designed for accessing high-density patch panels.

There is a light inside which makes it easier to work in dark spaces.

7262597

Cleaning tool for LC and MU connectors

The cleaning is done through adapter.

Easy to use and palm-fitting design.

Can be used for more than 800 connectors. The cleaning cloth cannot be changed.

7262598

Cleaning tool for SC, FC and ST connectors

The cleaning is done through adapter

Easy to use and palm-fitting design

Can be used for more than 800 connectors. The cleaning cloth cannot be changed.

7262599

Cleaning tool for SC, FC, ST, LC, MU, LC-duplex and MU-duplex connectors

The cleaning is done directly with the connector

Can also be used with APC connectors

Easy to use and palm-fitting design

Can be used for more than 500 connectors. The cleaning cloth cannot be changed.

7263122, 1.25mm

7263123, 2.5mm

The package includes 5pcs.

Can be used to clean adapters and connectors through adapters.

7263121

PON optical power meter for FTTx applications and maintenance

This PON optical power meter can simultaneously test and estimate the signals of the voice, data, and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.

It is an essential and ideal tool for the construction and maintenance of the PON projects.

7263316, 150m

7268484, 500m

7268485, 1000m

The fibers that come out of the protective shell are 3mm thick and armored. The external connectorized cables length can be easily adjusted by the user. The magnet in the box makes it easy to attach the launch lead, for example, on the wall of a cabinet.

Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, MU/UPC, ST/UPC, FC/UPC and FC/APC, with any combination

Fiber options: SM 9/125 G.652, SM 9/125 G.657 A2, SM NZD G.655, MM 62,5/125 OM1, MM 50/125 OM2, MM 50/125 OM3, MM 50/125 OM4

Hot fusion tubing and stainless reinforcing steel rod.

7264887 40mm long

7262195 45mm long

7264109 61mm long

Keeps optic transmission properties of optical fiber

Enhances the protection to optical fiber splices.

7268332 for 12 fibers

7263233 for 24 fibers

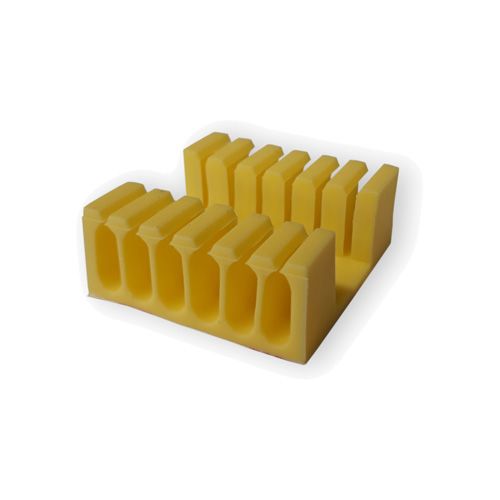

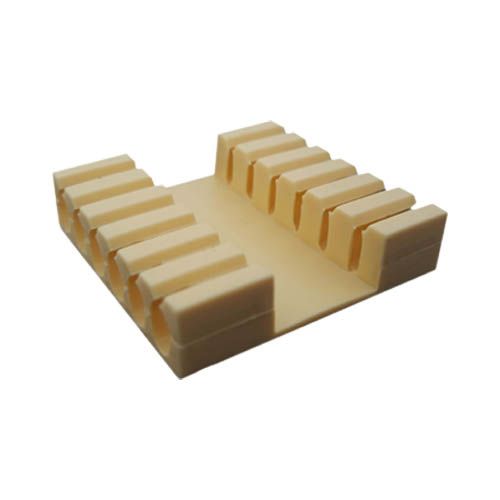

Rubber-like holder with adhesive tape at the bottom.

Every six openings can hold 2 or 4 splice protector sleeves.

Fits with both 40mm and 61mm splice protector sleeves.

7264145

A splice tray that can hold 48 splices. Includes splice holders and cable ties.

Attached with hooks to a splice tray holder.

7263522

A splice tray for extending 48 fibers, which includes an adapter slot at the bottom.

Includes splice holders and cable ties.

1 pc LCA/LCA quadruplex adapter, One Piece model (7268994)

Double-sided foam tape is installed on the splice tray to make it easier for the fiber tubes to stay in place.

Hook fasteners

7269282

A splice tray that can hold 96 splices.

Includes splice holders and cable ties. Attached with hooks to a splice tray holder.

Identification code 7269205

Splicing made easy and low-priced with EasySplicer MK2

For both SM and MM fibers

Splicing time of less than 7 seconds

Loss estimation

Pull-test performed on splices

Built in oven

Easy to use and to carry along. Perfect for the FTTH installer

7269019

Soft Velcro fastener for cable and fiber management. Easy to open and close again. Does not cause unnecessary compression, and thus does not interfere with the signal. The length of the fastener is 200mm and the width is 15mm.

The package contains a total of 20 Velcro fasteners:

7269028

Branch block for branching shrinks

7269029

Multibranch shrink for the oval cable inlets of NAF general joint closures. The shrink is suitable for cables with an outer diameter of 8 - 14.8 mm.
