NAF1000 preinstalled modules

NAF1000 preinstalled modules have a tail cable already installed in the module. The modules can also be fitted with a ready assembled cable with connectors at both ends. With SC connectors the modules have the capacity of 12, 24 or 48 fibers and with LC connectors the modules have the capacity of 24, 48 or 96 fibers.

Preinstalled modules

There are two different heights of the modules. 12-, 24-, and 48-fiber modules with both SC-UPC and SC-APC connectors are available for cross-connection cabinets. Modules are also available with LC-UPC and LC-APC connectors, in which case 24, 48 or 96 LC connectors can be installed in one module. FOAM rubbers with ready-made cuts for patch cords are used as pull-relief.



The module is equipped with ready assembled cable, in which connectors are preinstalled to the module and the other end is free for splicing.

Below are the identification codes for the lengths in stock. Other lengths are also available with a couple of days’ notice. Clicking the product code numbers will take you to the product page on the Finnish STK service and clicking the product name will open a picture of the product.

NAF1000 PREINSTALLED MODULES
Product code Product name Product code Product name
SC/UPC 24 fibers LC/UPC 24 fibers
7264299 NAF1000 SC/- HBBX 24SML 5m 7269252 NAF1000 LC/- HBBX 24SML 5m
7264162 NAF1000 SC/- HBBX 24SML 15m 7269253 NAF1000 LC/- HBBX 24SML 15m
7264816 NAF1000 SC/- HBBX 24SML 25m 7269254 NAF1000 LC/- HBBX 24SML 25m
7262043 NAF1000 SC/- HBBX 24SML 35m 7269255 NAF1000 LC/- HBBX 24SML 35m
7262044 NAF1000 SC/- HBBX 24SML 50m 7269256 NAF1000 LC/- HBBX 24SML 50m

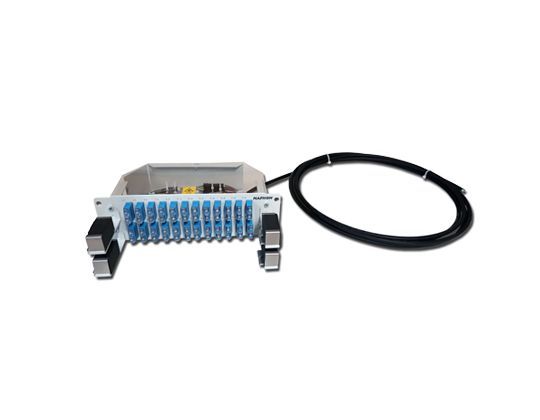

SC/UPC 48 fibers LC/UPC 48 fibers
7264297 NAF1000 SC/- HBBX 48SML 5m 7269259 NAF1000 LC/- HBBX 48SML 5m
7264164 NAF1000 SC/- HBBX 48SML 15m 7269260 NAF1000 LC/- HBBX 48SML 15m
7264433 NAF1000 SC/- HBBX 48SML 25m 7269261 NAF1000 LC/- HBBX 48SML 25m
7262047 NAF1000 SC/- HBBX 48SML 35m 7269262 NAF1000 LC/- HBBX 48SML 35m
7262048 NAF1000 SC/- HBBX 48SML 50m 7269263 NAF1000 LC/- HBBX 48SML 50m

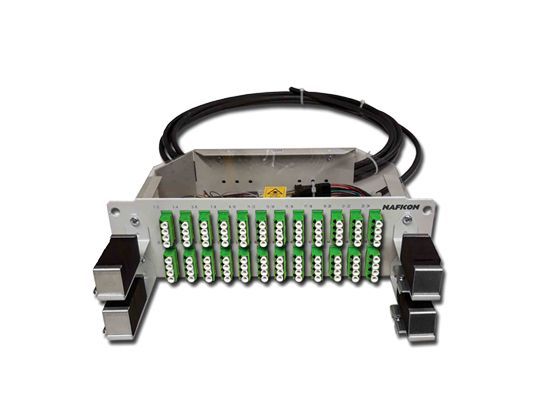

LC/UPC 96 fibers
7263487 NAF1000 LC/- HBBX 96SML 5m
7263488 NAF1000 LC/- HBBX 96SML 15m
7263489 NAF1000 LC/- HBBX 96SML 25m
7263490 NAF1000 LC/- HBBX 96SML 35m
7263491 NAF1000 LC/- HBBX 96SML 50m

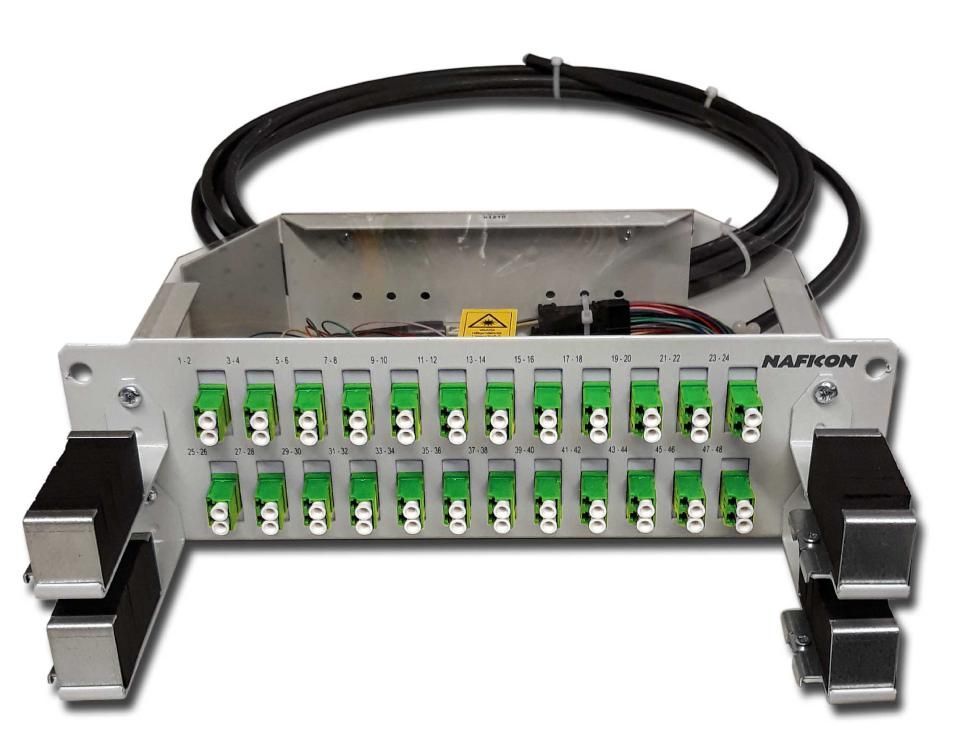

SC/APC 24 fibers LC/APC fibers
7264564 NAF1000 SCA/- HBBX 24SML 5m 7269327 NAF1000 LCA/- HBBX 48SML 5m 1U
7269204 NAF1000 SCA/- HBBX 24SML 15m 7263481 NAF1000 LCA/- HBBX 48SML 15m 1U
7264815 NAF1000 SCA/- HBBX 24SML 25m 7263482 NAF1000 LCA/- HBBX 48SML 25m 1U
7264370 NAF1000 SCA/- HBBX 24SML 35m 7263483 NAF1000 LCA/- HBBX 48SML 35m 1U
7264371 NAF1000 SCA/- HBBX 24SML 50m 7263484 NAF1000 LCA/- HBBX 48SML 50m 1U
7269328 NAF1000 LCA/- HBBX 48SML 5m 2U
7269413 NAF1000 LCA/- HBBX 48SML 15m 2U
Naficon Liitin Oy
Naficon Liitin Oy
Naficon Liitin Oy
Naficon Liitin Oy

Our wide selection covers cross-connection cabinets, splice cabinets and preinstalled modules.
