Data Center Cabinets
Naficon's 19" data cabinets and mechanical solutions provide a stable and flexible platform for fiber and copper cabling. The cabinets are designed for easy installation, efficient cable management and optimal cooling.
Key features
- Robust construction and high load capacity
- Excellent cable management on both the front and back
- Wide range of accessories (shelves, guides, panels)
- Compatible with modular solutions

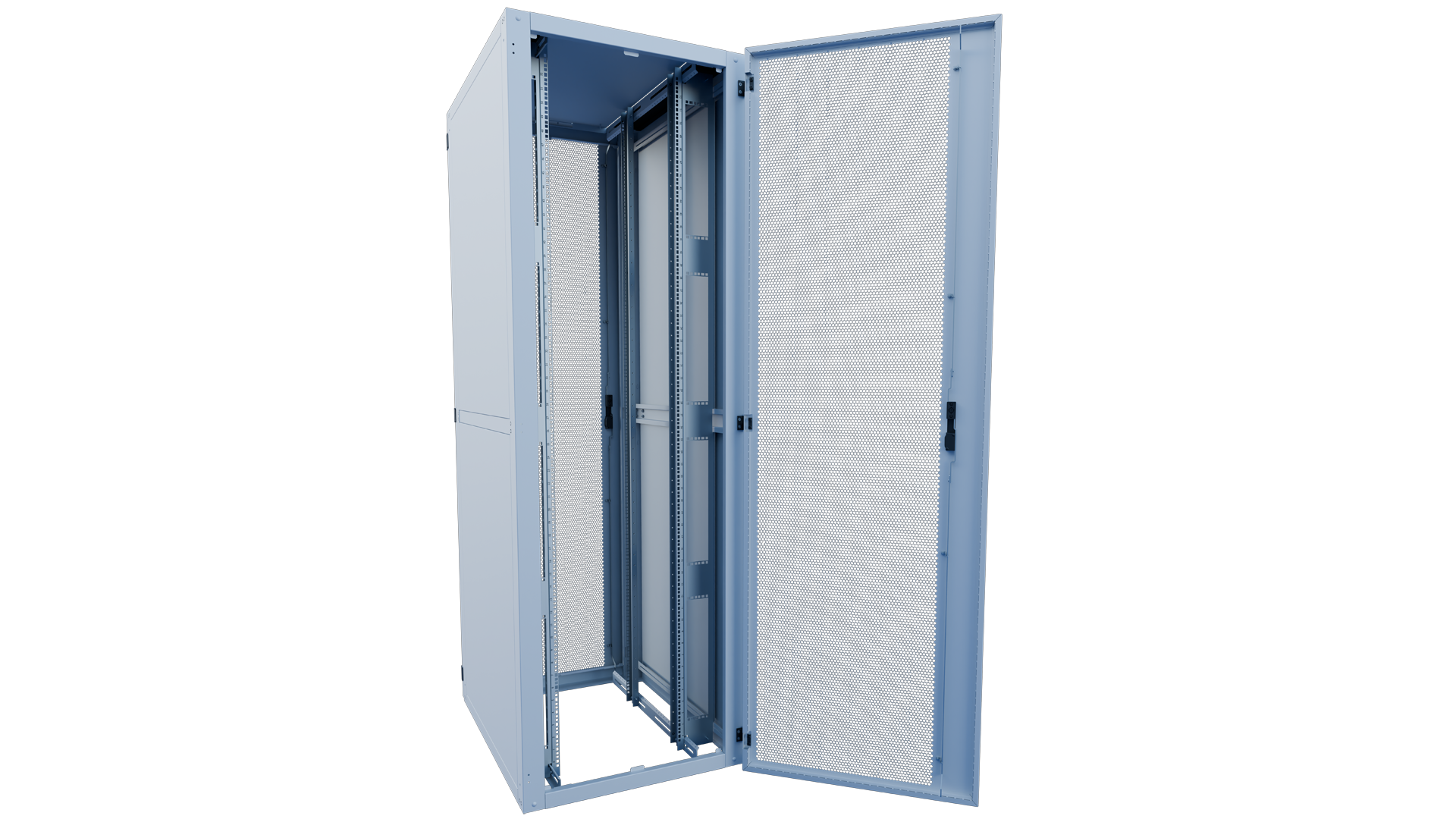

Data Center Cabinet 52U
Designed for modern data centers
This cabinet is a heavy-duty solution for demanding data center and server environments. It is built according to IEC 61587‑1 and offers exceptional reliability with a static load capacity of 1500 kg (NL‑05). The cabinet has external dimensions of 1200 mm depth, 800 mm width and 2492 mm height.
Key features
- Robust construction: Powder-coated steel frame, lockable two-piece side panels and stylish light gray finish (RAL 7035)
- Flexible installation: Adjustable 19” front and rear rails (250–1000 mm), clear U-slot and depth markings
- Plenty of space: 52U of installation space at the front and rear and 16U on the sides at the front
- Optimized air circulation: Cold–hot aisle solution with cover panels (adjustable in 1U increments) and additional sealing plates for 16U capacity
- Safe construction: Lockable two-piece side panels and removable roof with brush-sealed cable entries (900 mm long and 110 mm wide)
- Smart cable management: Vertical cable tie rails with stepless depth adjustment, PDU mounting options for narrow and wide units
- High performance doors: One-piece perforated front and rear doors (>80% perforation), tool-less hinges, 3-point deadbolt locking and Euro DIN lock compatibility (Abloy, ILOQ)
- Grounding capability: Main grounding point on roof and bottom, multiple mounting points inside the frame
- Expandability: Open base design and included cabinet row mounting kit
Why choose Data Center Cabinet 52U?
- Strength and reliability – designed for heavy loads and continuous use
- Flexibility – adjustable rails, modular cover panels and versatile cable and PDU solutions
- Energy efficiency – advanced airflow management optimizes cooling
- Security – lockable panels and professional door mechanics
More than just a rack
The cabinet is a future-proof, scalable, and stable foundation for your entire IT infrastructure.
Standards and compliance
The cabinet meets all applicable standards and regulations:
1. IEC 61587-1 ; Nominal load. Product has nominal load classification NL 05 which ensures static load carrying capacity of 1500kg
2. IEC 61587-1; Flammability. Product is in compliance with flammability requirements stated in the standard IEC 61587-1
3. IEC 61587-1; Protective earthing. Product is in compliance with protective earthing requirements stated in the standard IEC 61587- 1 and IEC 62368-1:2020.
4. IEC 60297-3-100. Product is in compliance with dimensional requirements stated in the standard IEC 60297-3-100.
5. ISO / EN 12944-2; Powder painted parts of the product are in compliance with corrosion protection CLASS C3M requirements stated in the standard ISO 12944:2018
6. RoHS Directive 2011/65/EU 2015/863/EU.
7. Regulation (EC) No. 1907/2006 REACH & Candidate List of SVHC Substances according to Art 59 Regulation (EC) No 1907/2006 REACH
